New MILLTRONICS SL10-II | CNC Lathes
Have one to sell?
ConditionNew
New

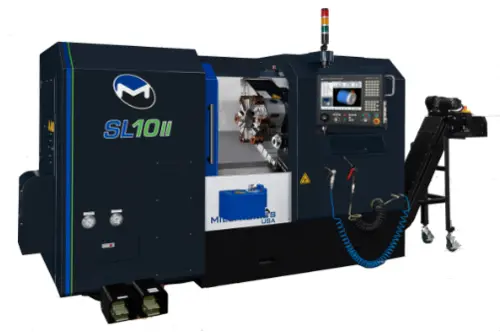

Slant-Bed Turning Center
Step up to the SL10-II, featuring a 10″ 3-jaw chuck, 3.74″ spindle bore and maximum turning length of 29.9″. This model has a 30 HP spindle motor and 12 tools in the turret. Options include: chip conveyor, tailstock, parts catcher, and tool presetter.
Standard Features
- 3-jaw hydraulic chuck with foot switch
- 12 position auto turret with 1″ slots
- True slant bed with one-piece base casting
- Linear motion guideways with roller type bearings
- Full enclosure with sliding door
- Flood coolant
- Auto lubrication
- Part, wire frame & solid model graphics
- Constant Surface Speed (CSS)
- 120 GB solid-state hard drive
- 15″ LCD color touch screen display
- Spindle load meter
- LCD hour meter
- One-year warranty
Slant-Bed Turning Center
Step up to the SL10-II, featuring a 10″ 3-jaw chuck, 3.74″ spindle bore and maximum turning length of 29.9″. This model has a 30 HP spindle motor and 12 tools in the turret. Options include: chip conveyor, tailstock, parts catcher, and tool presetter.
Standard Features
- 3-jaw hydraulic chuck with foot switch
- 12 position auto turret with 1″ slots
- True slant bed with one-piece base casting
- Linear motion guideways with roller type bearings
- Full enclosure with sliding door
- Flood coolant
- Auto lubrication
- Part, wire frame & solid model graphics
- Constant Surface Speed (CSS)
- 120 GB solid-state hard drive
- 15″ LCD color touch screen display
- Spindle load meter
- LCD hour meter
- One-year warranty
Imperial
| Swing | 22.9" |
| Machining Length | 29.9" |
| Chuck Size | 10" |
| Bar Capacity | 1.5" |
| Power | 30 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 17.7" |
| Tailstock | Yes |
| Dimensions | 73.5” H |
| Weight | 11,028 lbs |
