New MILLTRONICS VM3018IL | Vertical Machining Centers

Description

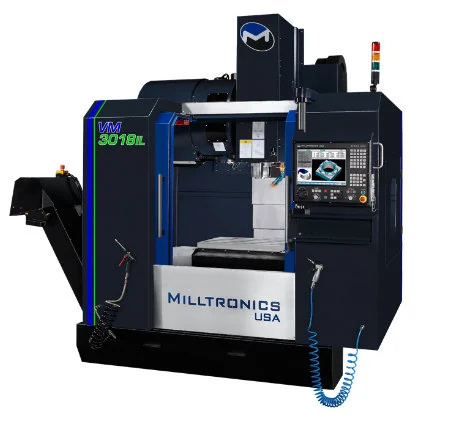

3-Axis Performance Vertical Machining Center

The Milltronics VM3018IL has 30″ x 18″ x 22″ travels and a 34″ x 18″ table that supports 3,140 lbs table weight at full speed. The VM3018IL has a 24 HP 12,000 RPM BIG-PLUS spindle.

Standard Features
- Heavily ribbed one piece fine grain cast iron casting
- Fully enclosed machine guard with side doors
- 35/45 mm roller linear way technology
- Precision ground ballscrews supported at both ends
- Precision ground table surface
- Telescopic metal way covers
- 30 pocket arm type ATC
- ISO No. 40
- Automatic positive displacement lubrication system
- High torque AC digital servo drives
- High torque closed loop vector spindle drive system
- Dual work lights
- LCD hour meter
- Spindle taper blow-out and tool release button
- Single spare “M” function with CNC “wait” channel
- Programmable on/off flood coolant system
- Rigid tap
- Edit key lockout switch
- Spindle load meter
- Feedrate and spindle speed overrides
- Spindle air purge
- End of cycle light
- Chip conveyor chip removal system
- Remote handwheel
- Air gun
- Coolant wash down gun
- One Year Warranty
