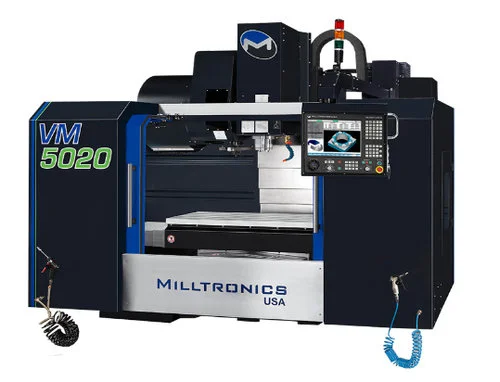

New MILLTRONICS VM5020 | Vertical Machining Centers

Description

3-Axis Vertical Machining Center

For only a few dollars more than the VM4020, the VM5020 CNC mill adds 10″ more X-travel. With a 52″ x 20″ table and travels of 50″ x 20″ x 20″ this machine is a great value.

Standard Features
- Milltronics 9000-DGI CNC
- Heavily ribbed one piece fine grain cast iron casting
- Fully enclosed machine guard with side doors
- 30/35 mm linear way technology
- Precision ground ballscrews supported at both ends
- Precision ground table surface
- Telescopic metal way covers
- 20 pocket double arm ATC
- CAT 40
- Automatic positive displacement lubrication system
- High torque AC digital servo drives
- High torque closed loop vector spindle drive system
- Work light (right side)
- LCD hour meter
- Spindle taper blow-out and tool release button
- Spare “M” function with CNC “wait” channel
- Programmable on/off flood coolant system
- Rigid tap
- Edit key lockout switch
- Spindle load meter
- Feedrate and spindle speed overrides
- Spindle air purge
- End of cycle light
- One Year Warranty
