New MILLTRONICS HBM110XT | Horizontal Table Type Boring Mills
Have one to sell?
ConditionNew
New

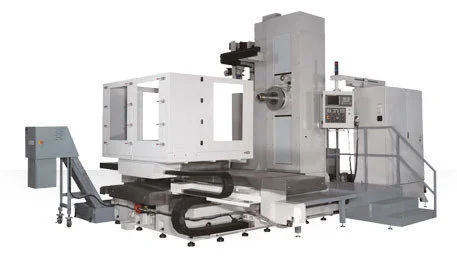

The HBM110XT is designed for precision machining of big work pieces and features a Fanuc 32i-MB CNC Control with 10.4″ LCD color display. The 49 x 49″ table has XYZW travels of 78.7 x 66.9 x 55.1 x 21.6″. The 60-pocket, double arm automatic tool changer loads tooling into the 3000 RPM, 50 taper spindle. The spindle quill diameter is 4.3″ and the spindle is driven by a 30/25HP spindle motors with 2 speed geared head stock.
The HBM110XT is designed for precision machining of big work pieces and features a Fanuc 32i-MB CNC Control with 10.4″ LCD color display. The 49 x 49″ table has XYZW travels of 78.7 x 66.9 x 55.1 x 21.6″. The 60-pocket, double arm automatic tool changer loads tooling into the 3000 RPM, 50 taper spindle. The spindle quill diameter is 4.3″ and the spindle is driven by a 30/25HP spindle motors with 2 speed geared head stock.
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 78.7" |
| Y-Vert Tvl of Head | 66.9" |
| Power | 30 hp |
| RPM | 3,000 RPM |
| Table-W | 49" |
| Table-L | 49" |
| Spindle Tvl. | 55.1" |
